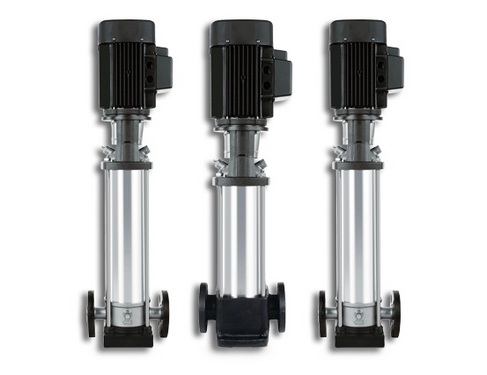

Vertical Multistage Centrifugal Pumps

Applications

• The pumps are suitable for liquid transfer in

• Washing systems

• Cooling and air-conditioning systems

• Water supply systems

• Water treatment systems

• Fire fighting systems

• Industrial plants

• Boiler feeding systems


Features

• High operating efficiency

• Precise parts for hygiene

• Good suction lift and operating pressure

• Service friendly

• Space saving

• Suitable for slightly aggressive liquids


Specifications

• Power range (kW) : 0.37-75kW/0.5hp-100HP

• Speed : 2900rpm, 50Hz & 3450 rpm, 60 Hz

• Versions : 230V - 50Hz & 60Hz (Single Phase) A.C. Supply, incorporated with

• Thermal Overload

• Protector : 380/415V, 50Hz & 230 /

• 460V, 60Hz (Three Phase) incorporated with Thermal Overload

• Protector : 380/415V, 50Hz & 230/460V, 60Hz (Three Phase)

• Type of Duty : S1 (Continuous)

• Degree of Protection : IP 55

• Class of Insulation : F

• Flow range upto : 150M3hr/660 gpm

• Head range upto: : 50 Hz-320m/

• 60Hz-770m/ 885ft : -40°C to +180°C /-1041 to 356f Liquid Temp.

• Operating Pressure : Max. 30 bar/ 435PSI
